PANORAMIC RC-10

DESIGNED TO HIT DIFFERENT

High Performance and Panoramic View

With corners added to the Full Panoramic version, it allows full customization with more color.

It complies with the specifications of the International Padel Federation.

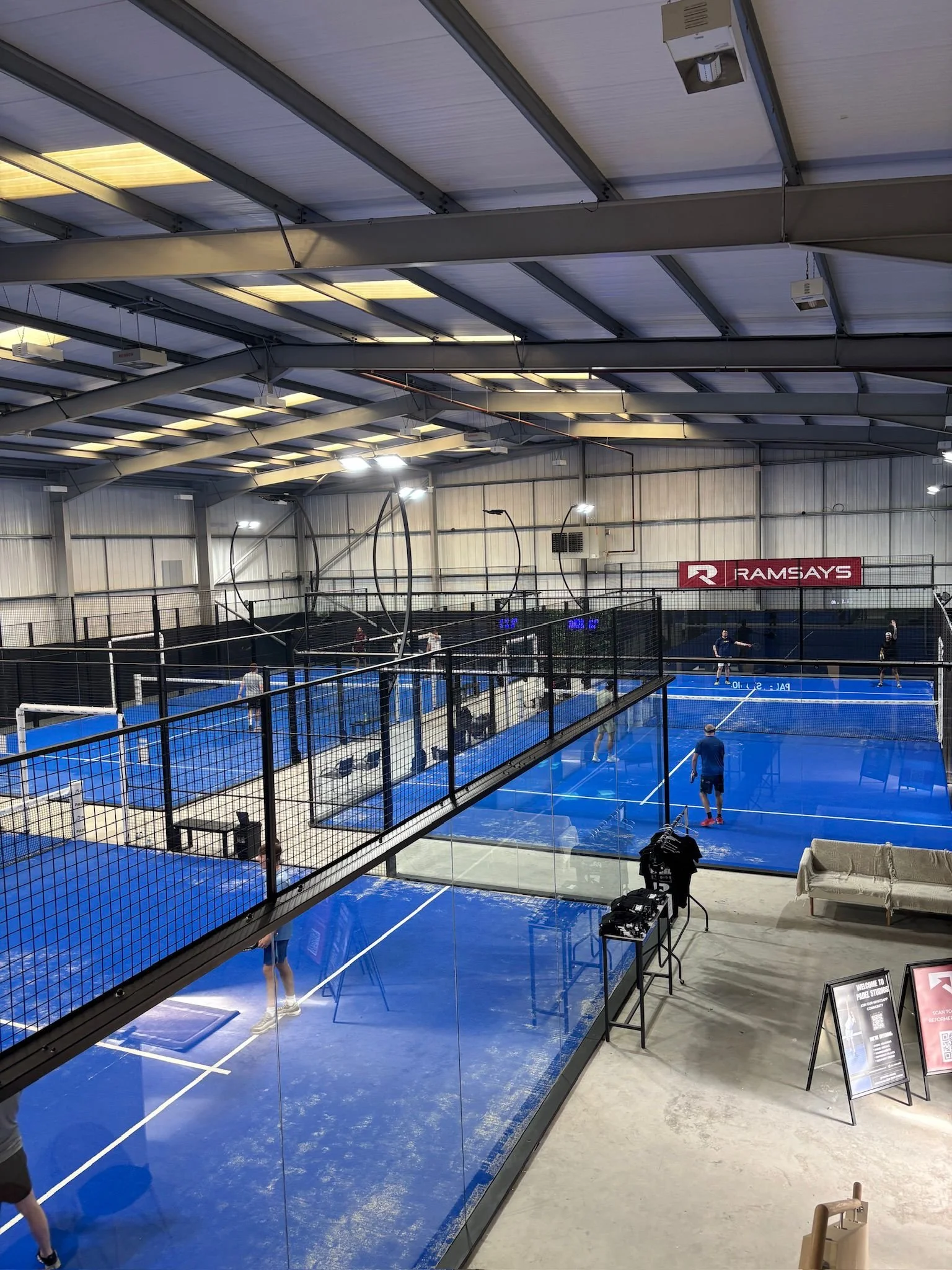

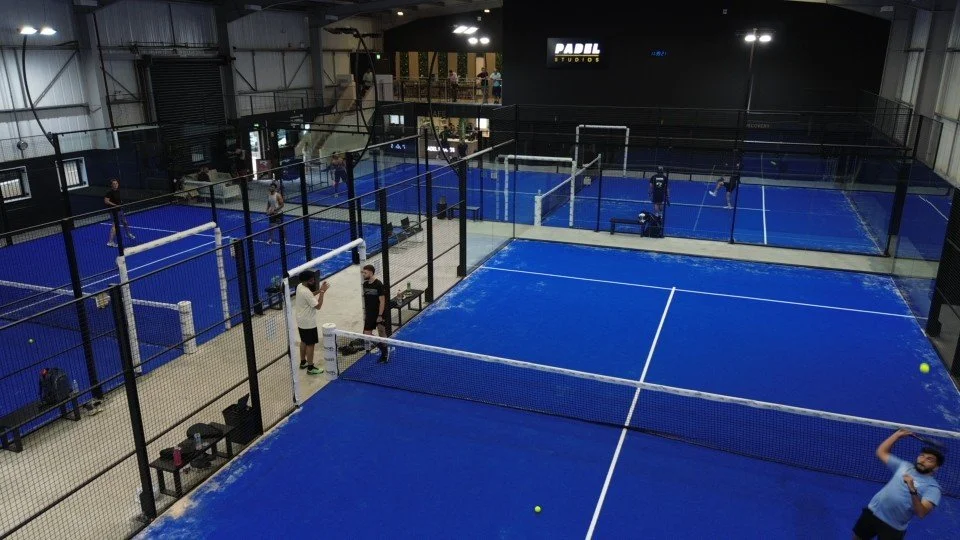

Indoor padel tennis courts in the UK with players practicing

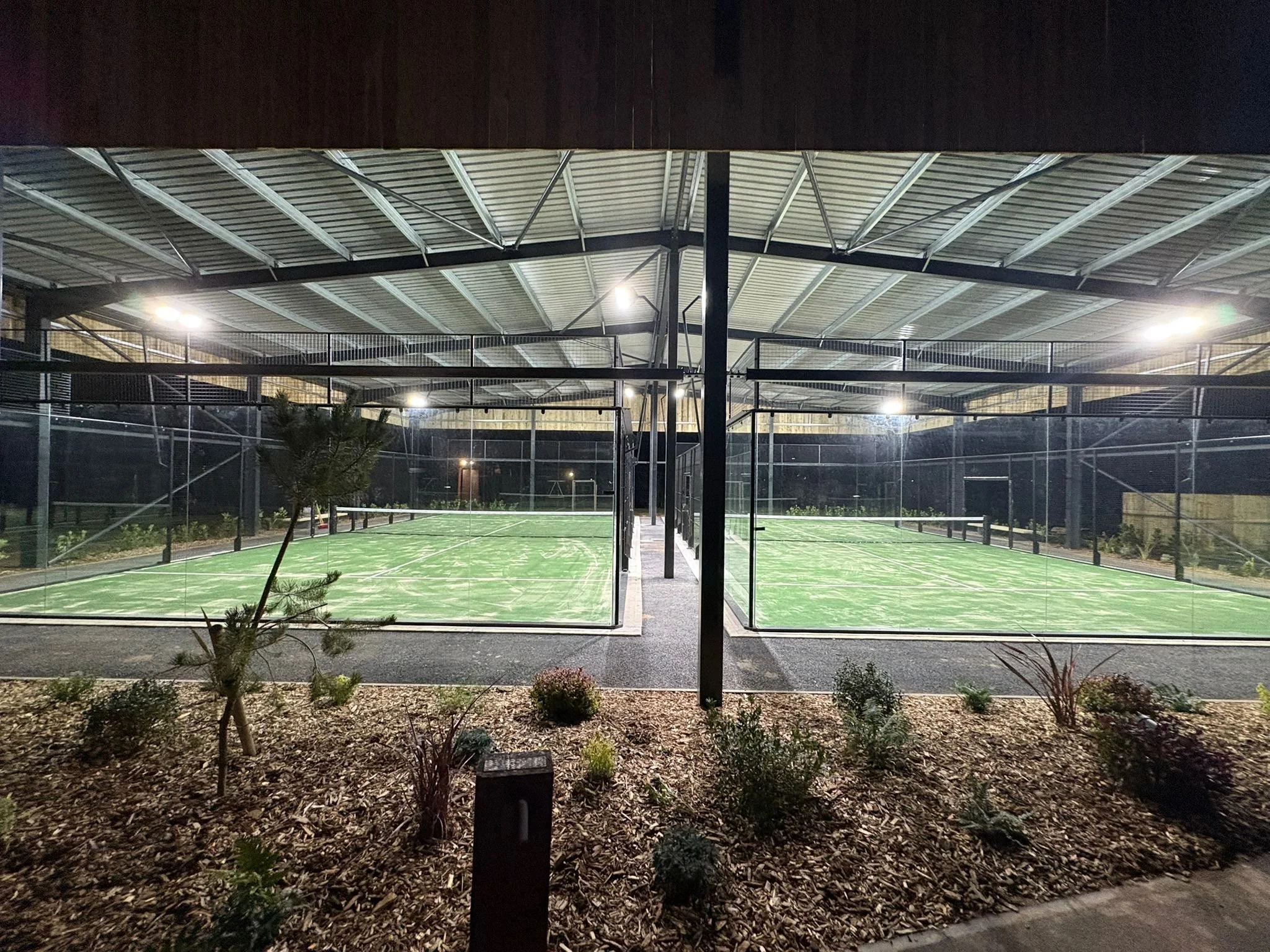

Nighttime view of two outdoor Panoramic Padel Courts under a large Canopy with bright lights, surrounded by a black mesh fence and landscaped with small bushes and a small tree in the foreground.

Features

  • 12mm tempered glass that provides total visibility and resistance to the most demanding game.

  • Galvanized steel structure painted or coated with epoxy in all the possible colors.

  • Best quality-price ratio - Medium-high range in its manufacture, reduced maintenance and high resistance.

  • Designed to allow moisture egress and oxidation with Laser cut technology

  • Anti Injury System. Safeguard the glass, ensures secure playing, and enhances ball bounce.

  • 3 different options for the shape and personalization on the colors of the lights structure. Choose between different spotlight models according to the light intensity required for your project.

  • Textured or straight turf, 12 or 10mm, to guarantee a perfect bounce and grip of the foot. The type of textured turf used is MONDO Shot, or MONDO STX as monofilament.

  • Net protectors with custom logo, entry cover and entrance plate personalized

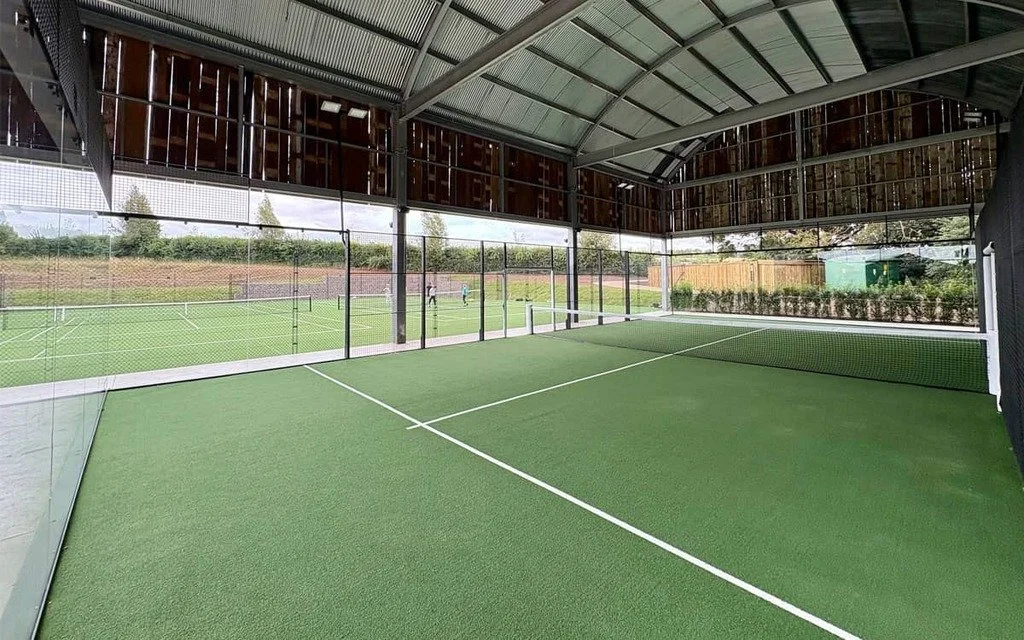

Indoor padel court with net, green surface, and large windows showing outdoor tennis courts and people playing. Soho Farmhouse

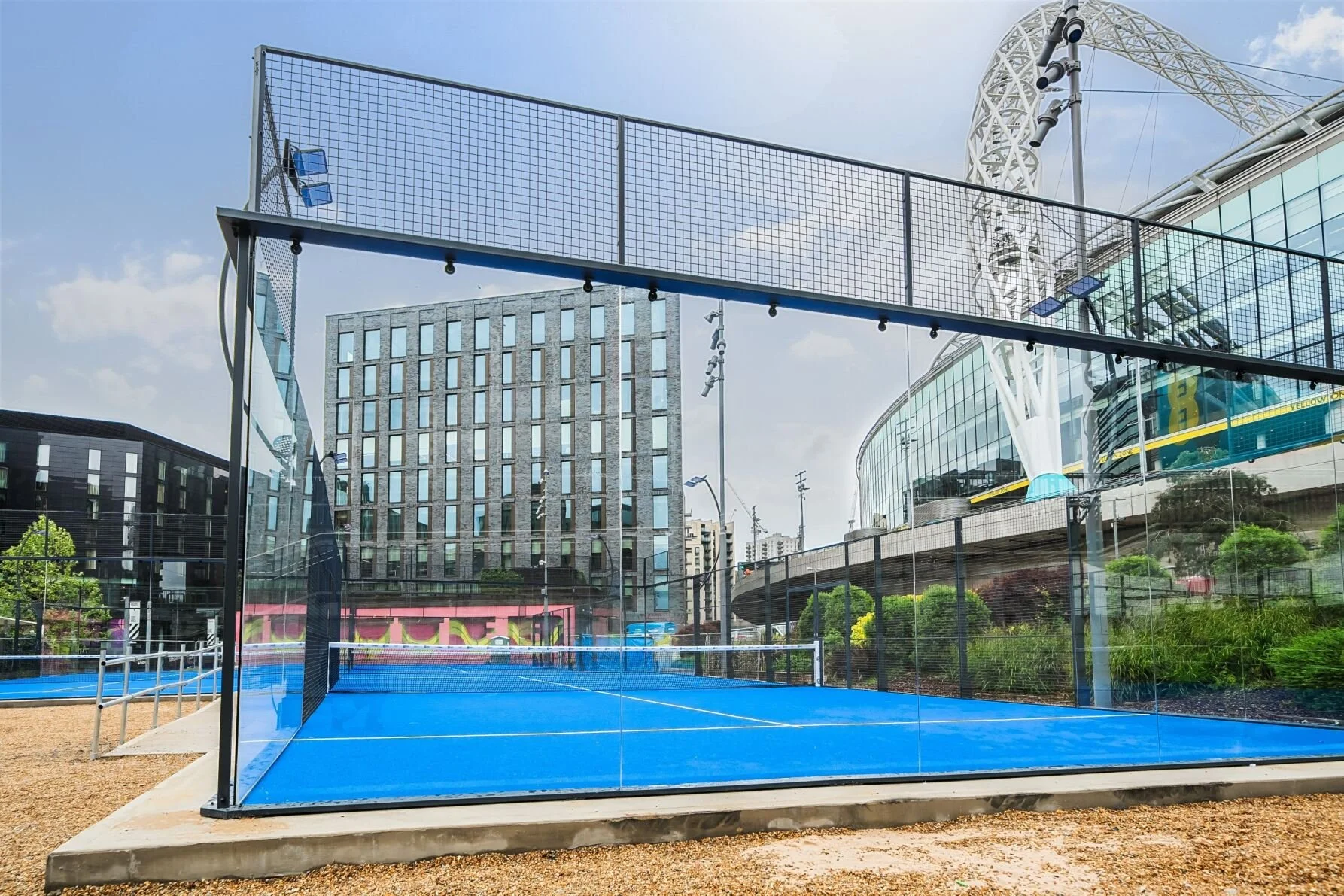

An outdoor Padel court with a blue surface, surrounded by a glass fence, Underneath the Wembley Arch

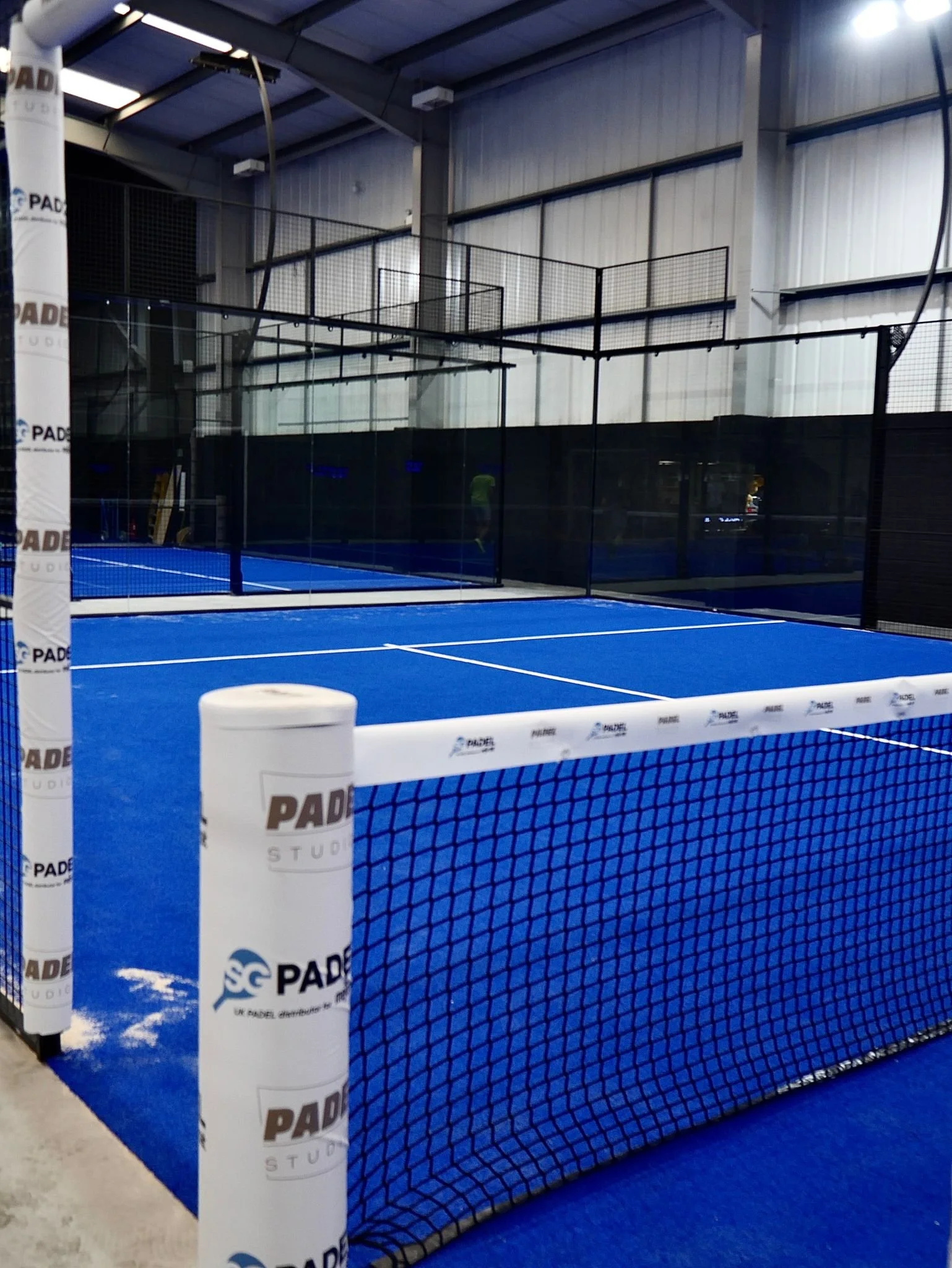

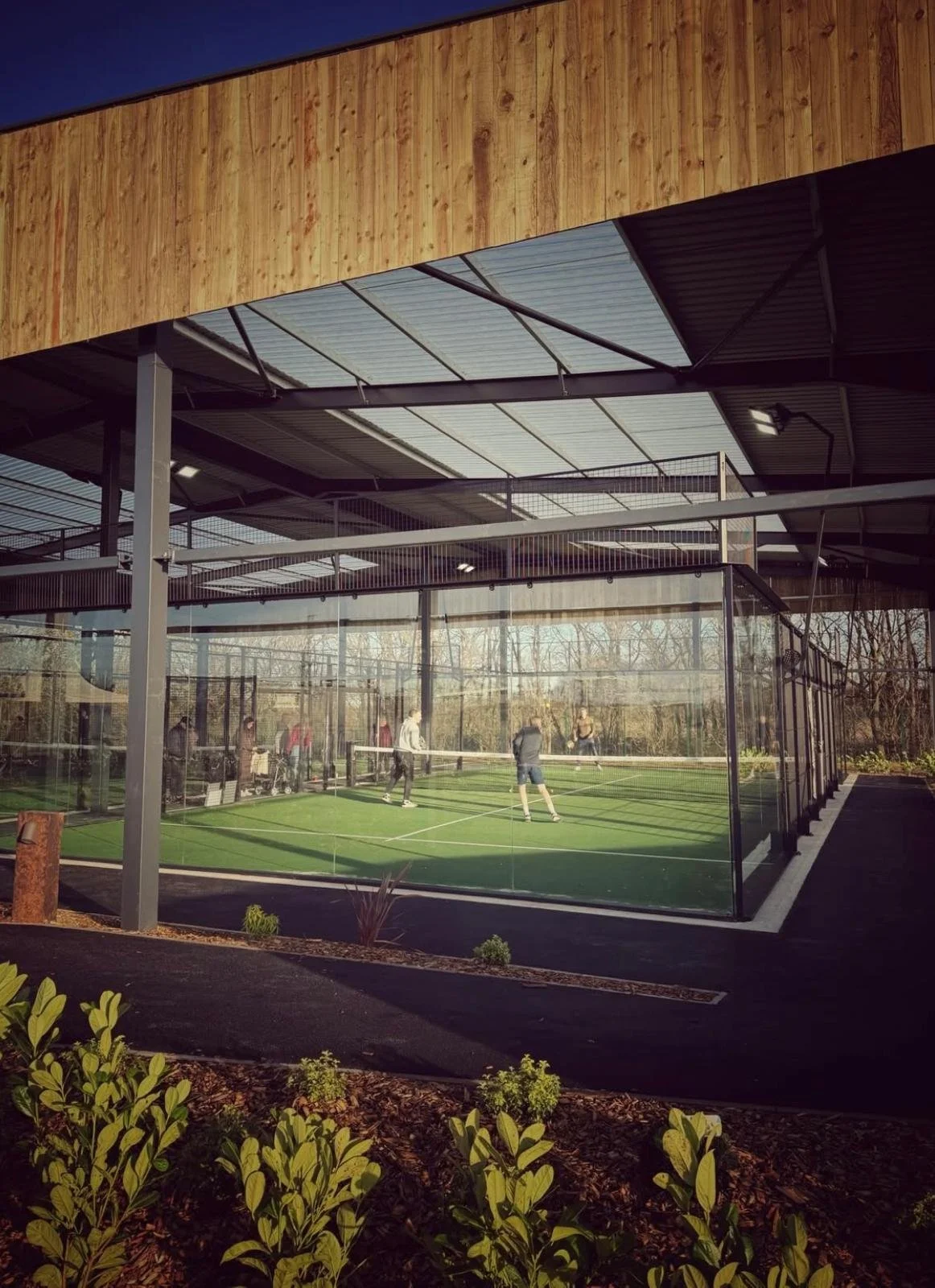

An indoor padel tennis court with glass walls and a Canopy.

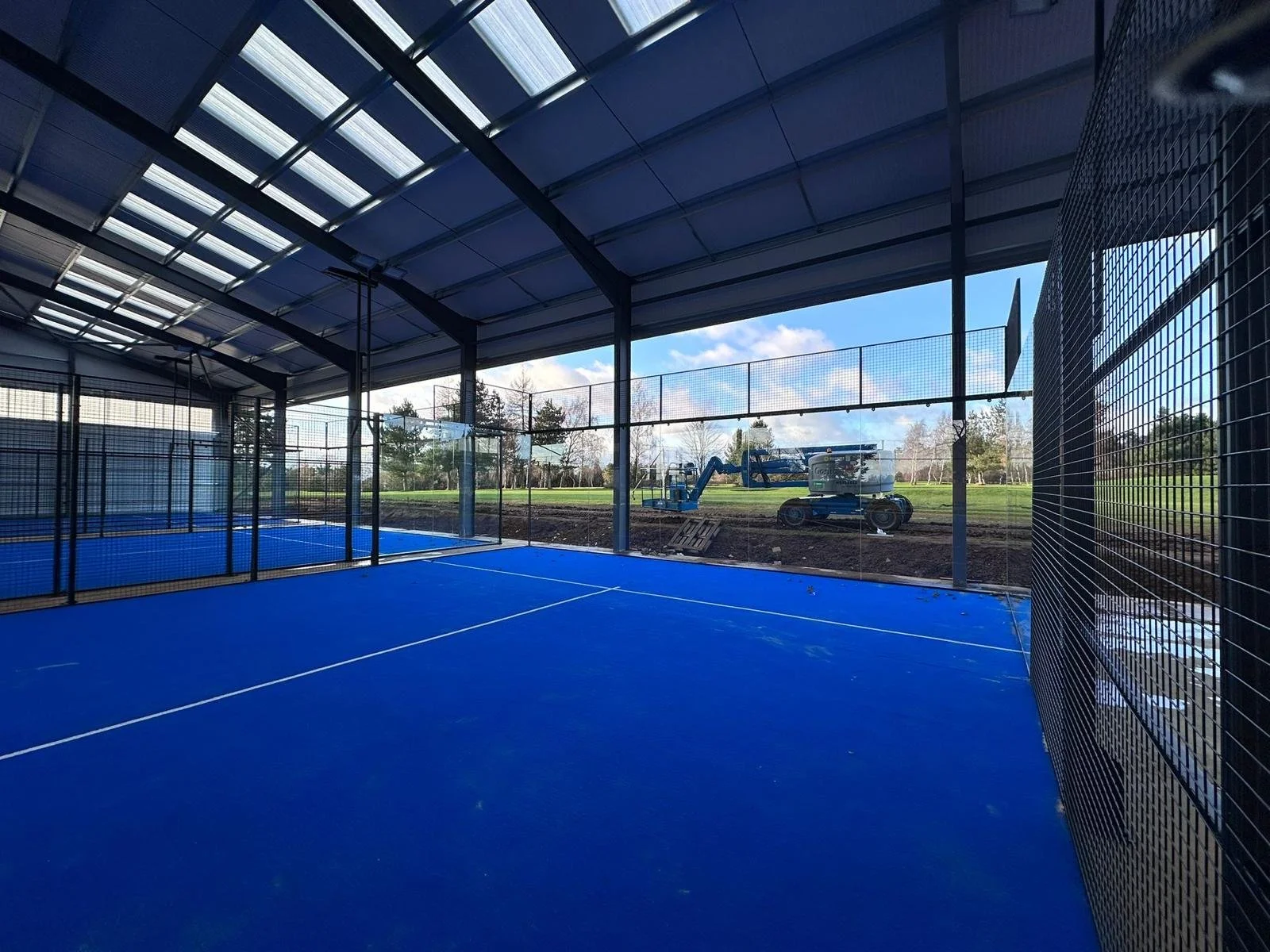

padel court with a bright blue surface, underneath a large Canopy in the UK surrounded by black mesh fencing, overlooking an outdoor field with construction equipment, trees, and a blue sky outside.

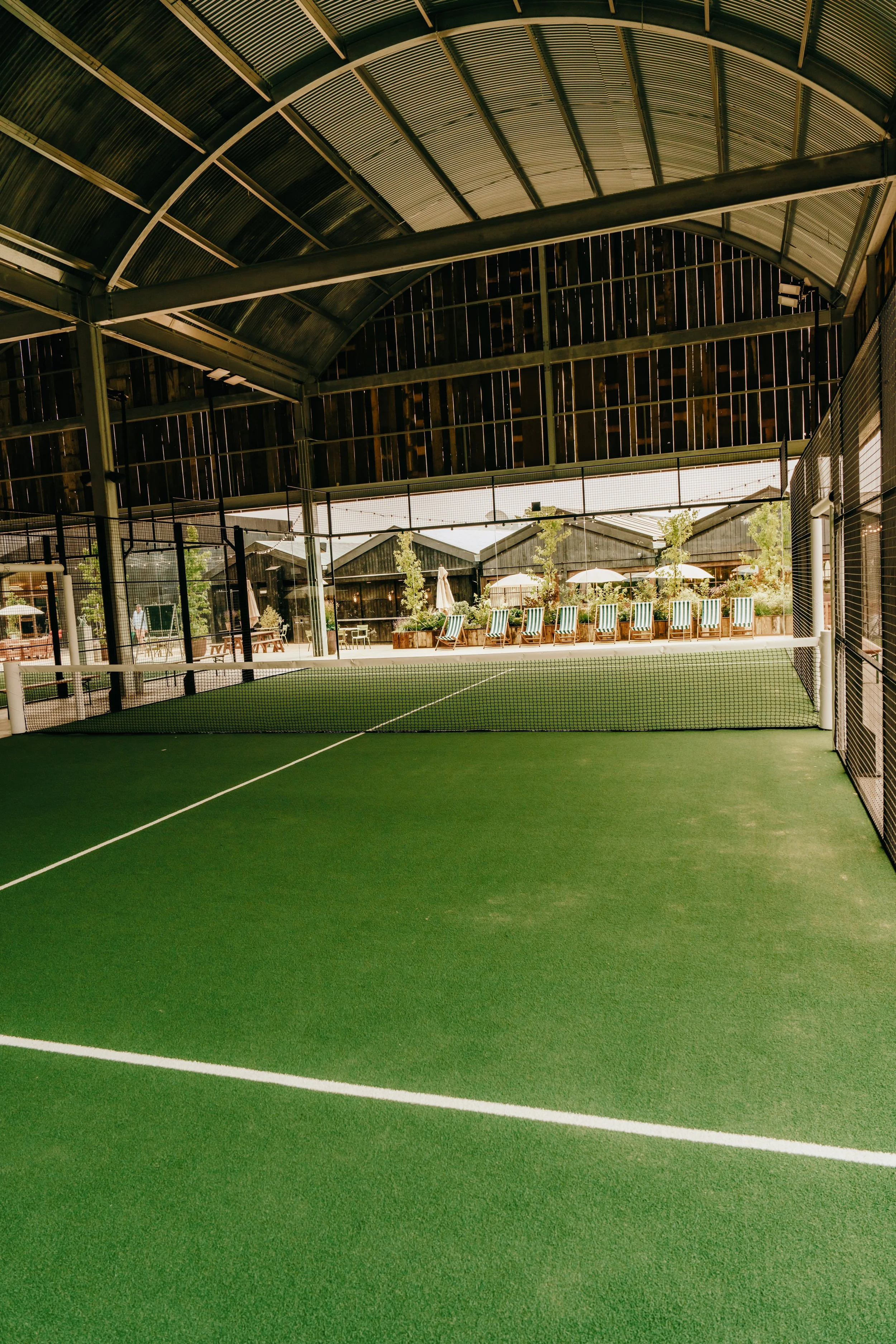

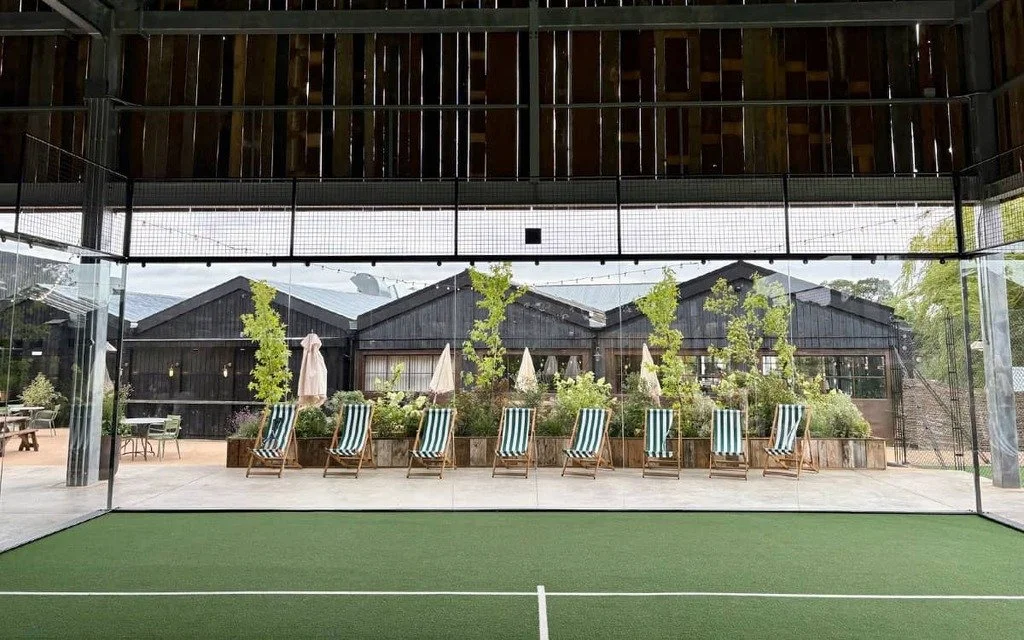

A Padel Court underneath a Canopy overlooking a Patio with several sunbeds.

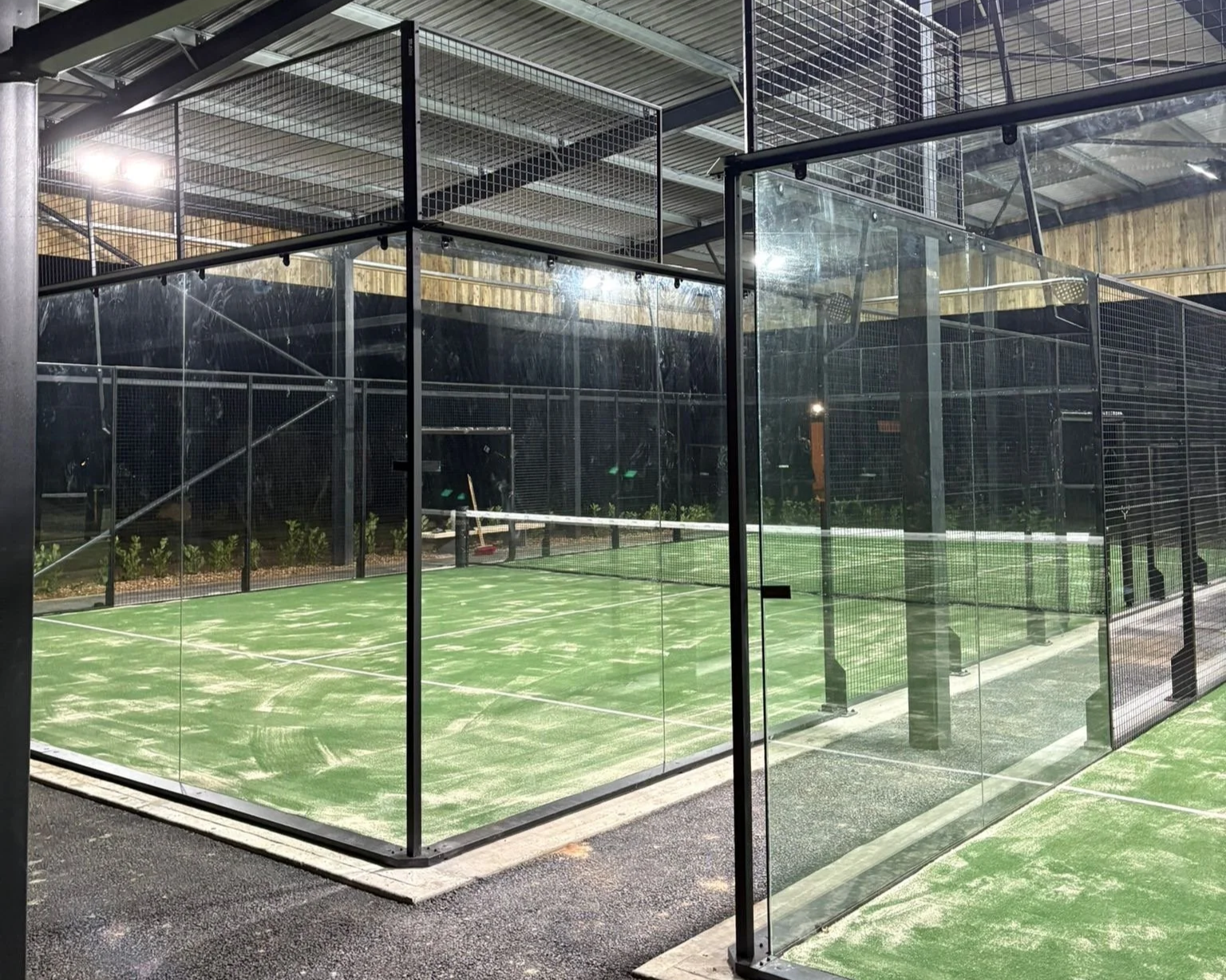

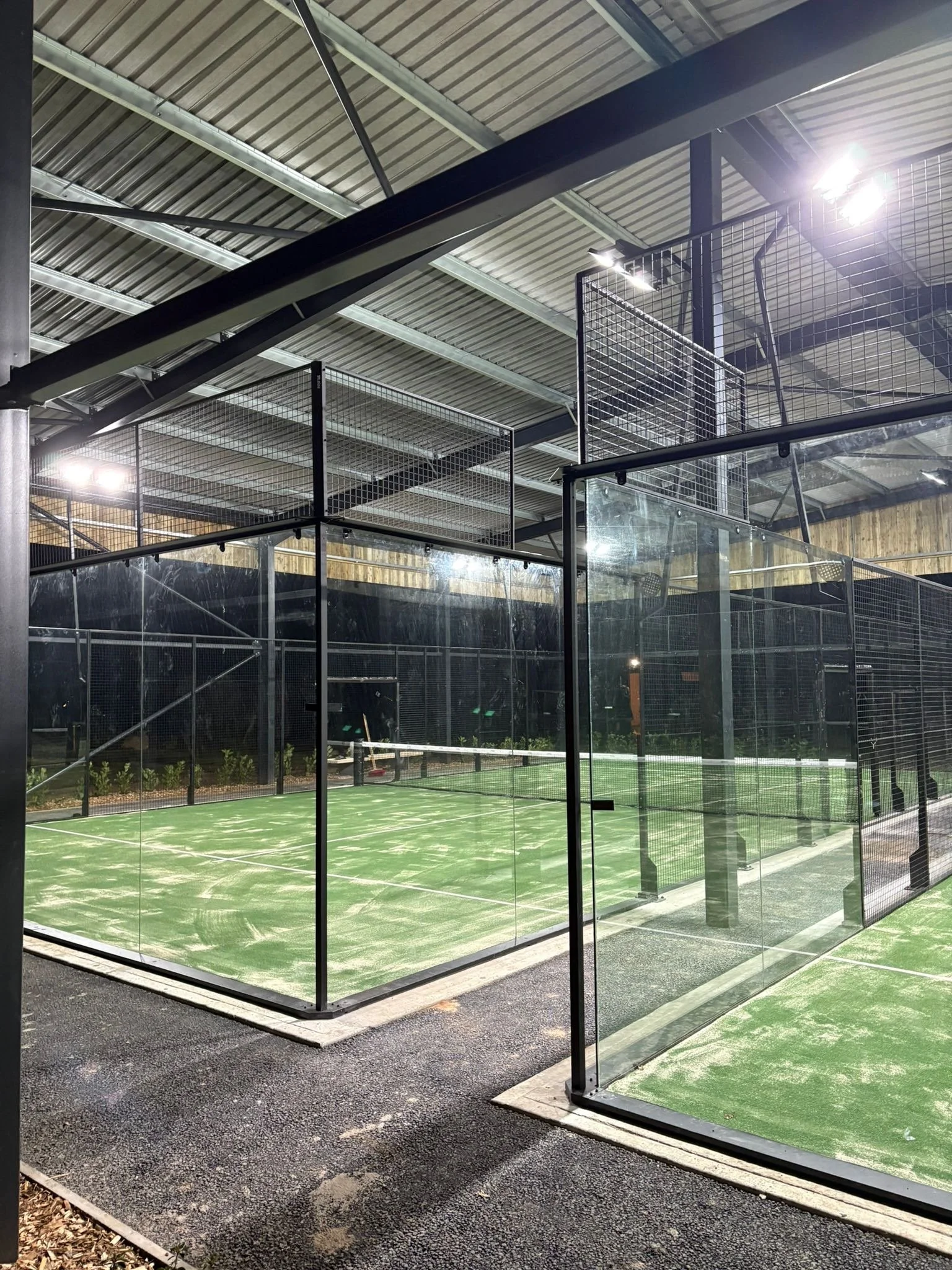

Padel Courts underneath a Canopy at night. MejorSet UK Padel

Technichal description

  • The enclosure of the court is formed by a self-supporting structure with a structural tube, closed and anchored with two lower and upper perimeter rings, made of structural sheet metal of 5mm.

    Galvanized steel painted or coated the structure with baked epoxy polyester resin. Electro-welded galvanized mesh 50x50x4mm with delivery without projections.

    Frames formed with 2mm thick structural tube according to specifications, with 3 horizontal 40x5mm plate crossbars for anti-buckling (prevents the structure from bending under weight).

  • Homologated 12mm tempered glass for the panoramic backgrounds and for the sides. In the case of the side windows, this court can mount 2 large 2x3m windows, the same size as the bottoms or the traditional system.

    All of them installed on 5mm neoprene to reduce vibrations and breaks. The manufacturing process of all this tempered glass is manufactured using a standardized production process and in compliance with the UNE EN 12150-1 standard.

  • For the Panoramic RC10 the default turf used is the 12mm monofilament, available in the 4 official colors accepted by the International Padel Federation: blue, green, orange/clay, black and purple.

    We also have the new 10mm textured turf, artificial turf used in the center court of the main professional tournaments in the world, which stands out for the textured effect of its filaments, which provide greater rotational and longitudinal traction capacity. It allows an increase in the grip and therefore improves the safety and performance of the displacements.

  • The metallic elements are coated with a thermosetting polyester powder paint formulated with polyester resins. This QUALICOAT-certified finish can be in the color of the customer's choice, and gives these elements good resistance to corrosion and ultraviolet rays, as well as high resistance to mechanical impact.

  • LED lighting with 8 spotlights of 150w or 200w is specially designed for our Padel Courts. To improve the performance in the lightening it is possible to increase the amount of lamps or with higher power.

    According to NIDE standards, the lighting of a Padel Court will be uniform and in a way that does not hinder the vision of the players, the referee team, or the spectators.

    We comply with the UNE EN 12193 standard "Lighting for sports facilities".

    Types of lightning structure: curve, Z, and straight.
